MF Series Fixed Shaft Circular Vibrating Screen

MF Series vibrating screen is mainly composed of screen box, vibration exciter, suspension (or support) device and motor. The motor drives the main shaft of the vibration exciter to rotate through the V-belt.

Power 18.5-37kw
Feed size 3-50mm
Throughput 100-830T/H

Material: River pebble, granite, basalt, iron ore, limestone, quartz, coal gangue, construction waste, etc

Application field: Sand quarry, mining, coal mining, concrete mixing plant, dry powder mortar, power plant desulfurization, quartz sand, etc.


Online Chat Request a Quote

Technical Advantages

  1. High screening efficiency
    The angle of screen surface is 20 ° and the screening efficiency is higher.
  2. Advanced design
    The vibration exciter is an eccentric shaft + eccentric block structure, which provides enough exciting force.
  3. Wear resistance and long service life
    Wear resistant rubber protective layer is designed for key parts to extend the service life of screen body.

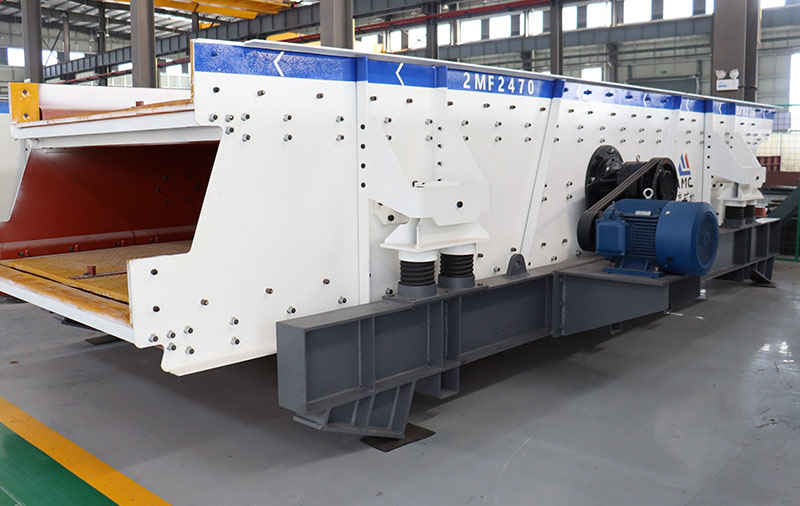

Fixed Shaft Circular Vibrating Screen

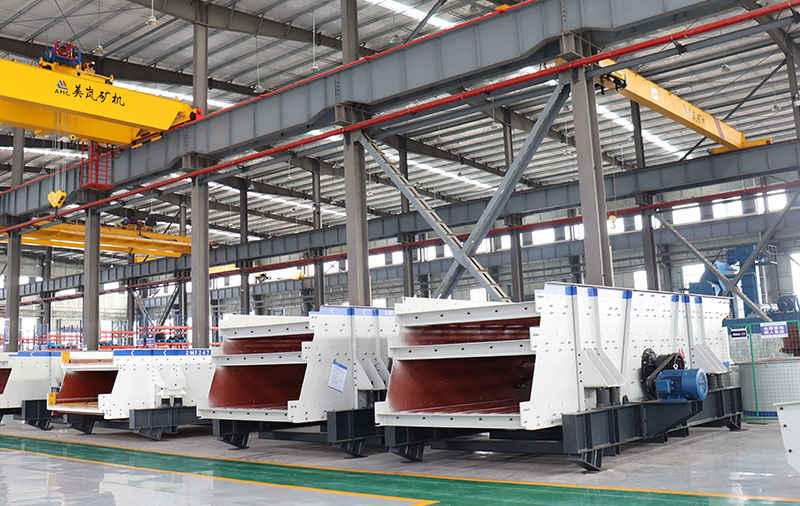

Fixed Shaft Circular Vibrating Screen

Working Principle

MF Series vibrating screen is mainly composed of screen box, vibration exciter, suspension (or support) device and motor. The motor drives the main shaft of the vibration exciter to rotate through the V-belt. Due to the centrifugal inertia force of the unbalanced weight on the vibration exciter, the screen box vibrates. Different amplitudes can be obtained by changing the eccentric axis of the exciter.

Specification Parameters

Model Screen quantity Scree size
(㎡)
Mesh size
(mm)
Processing capacity
(tph)
Vibration frequency
(rpm)
Amplitude
(mm)
Motor power
(kw)
Weight
(without motor)(kg)
2MF2160 2 12.6 3-50 100-360 900 8 18.5 10800
3MF2160 3 12.6 3-50 100-360 900 8 22 13500
2MF2470 2 16.8 3-50 220-750 900 8 30 11200
3MF2470 3 16.8 3-50 220-830 900 8 37 14200
